Features:

1. It is for cutting aluminum and upvc profiles, with cutting angle ranges of 45° and 90°.

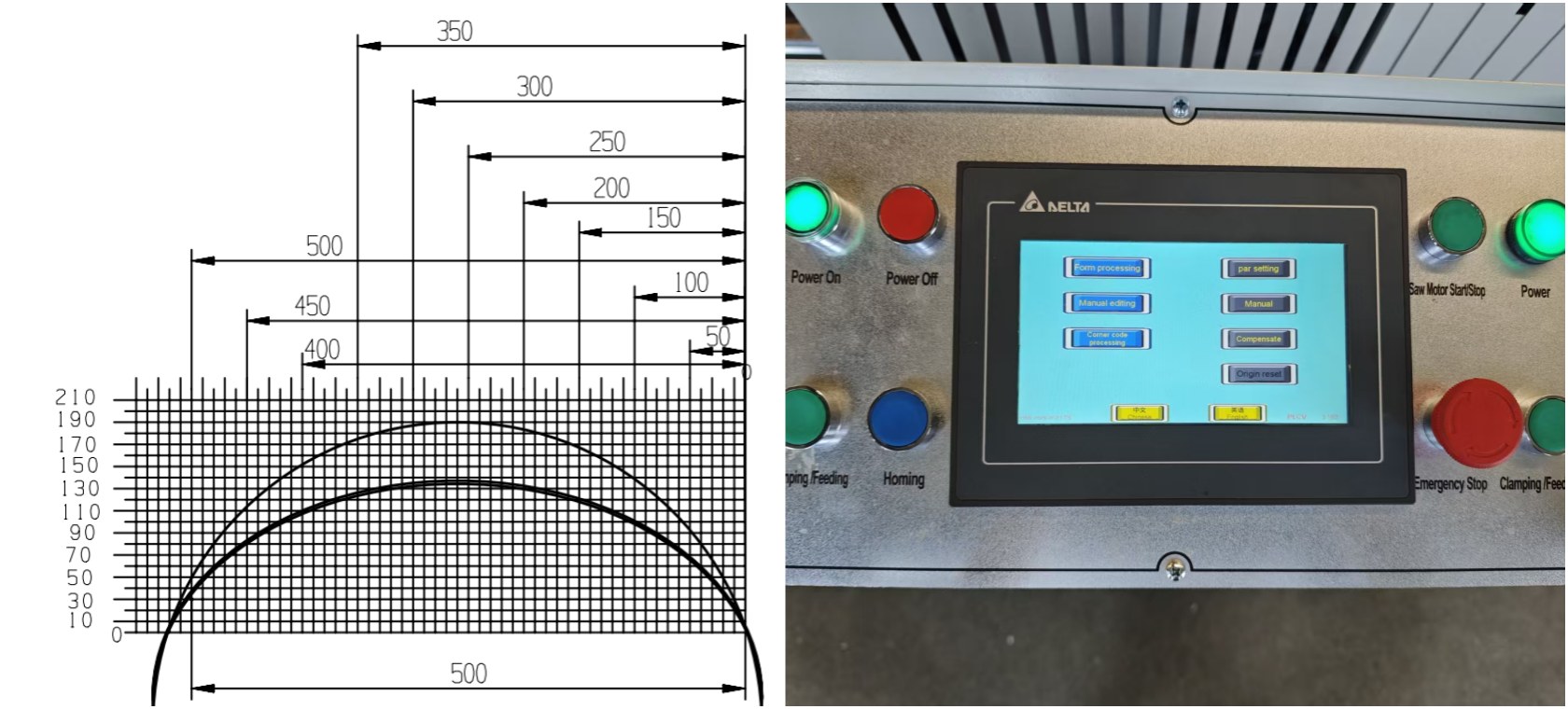

2. The cutting length is controlled and positioned by a CNC system, offering simple and convenient operation.

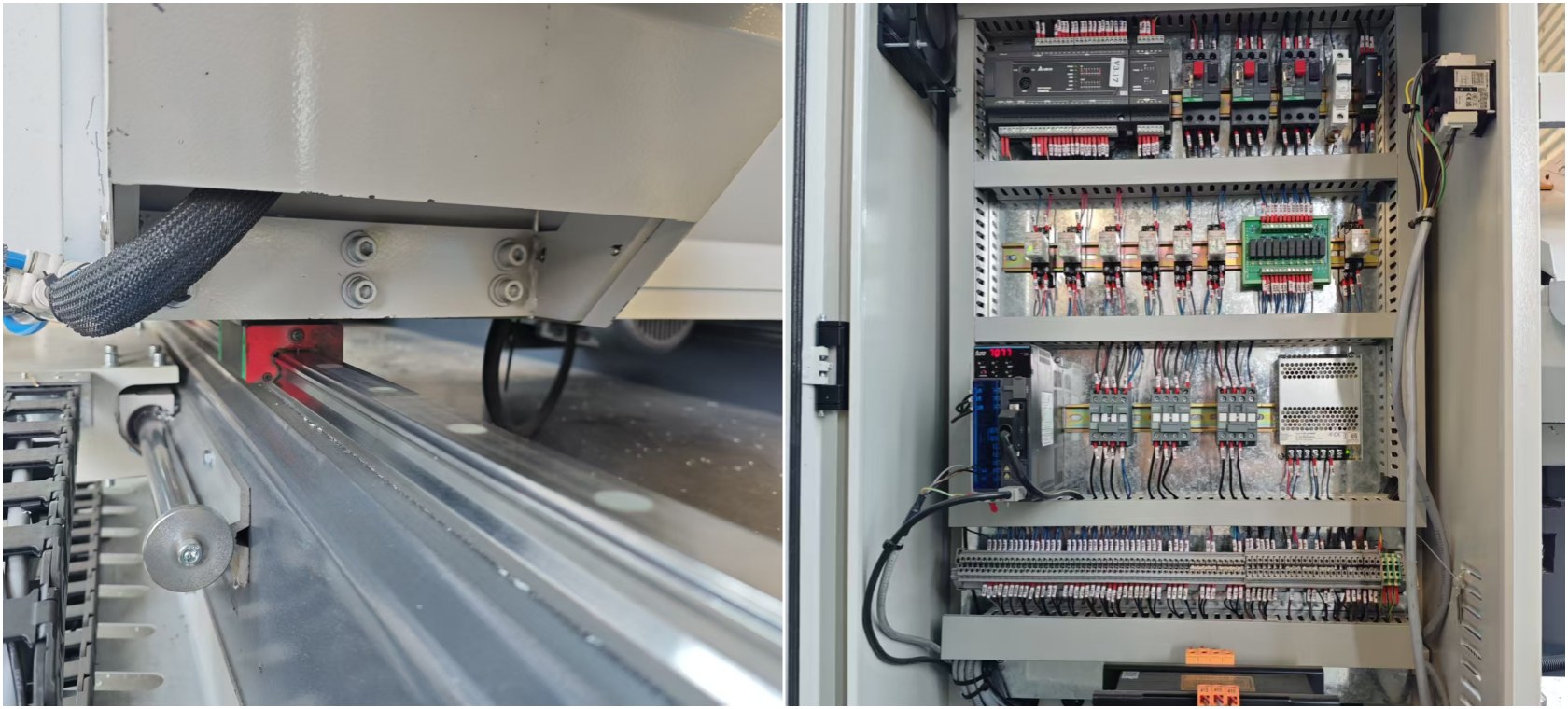

3. The movement of the movable saw head adopts a linear square rail motion pair, driven by a servo motor with gear-rack transmission and controlled by the CNC system, ensuring high precision and stability.

4. Linear feed method: The feed system uses a linear square rail motion pair, providing smooth feeding and high cutting dimensional accuracy.

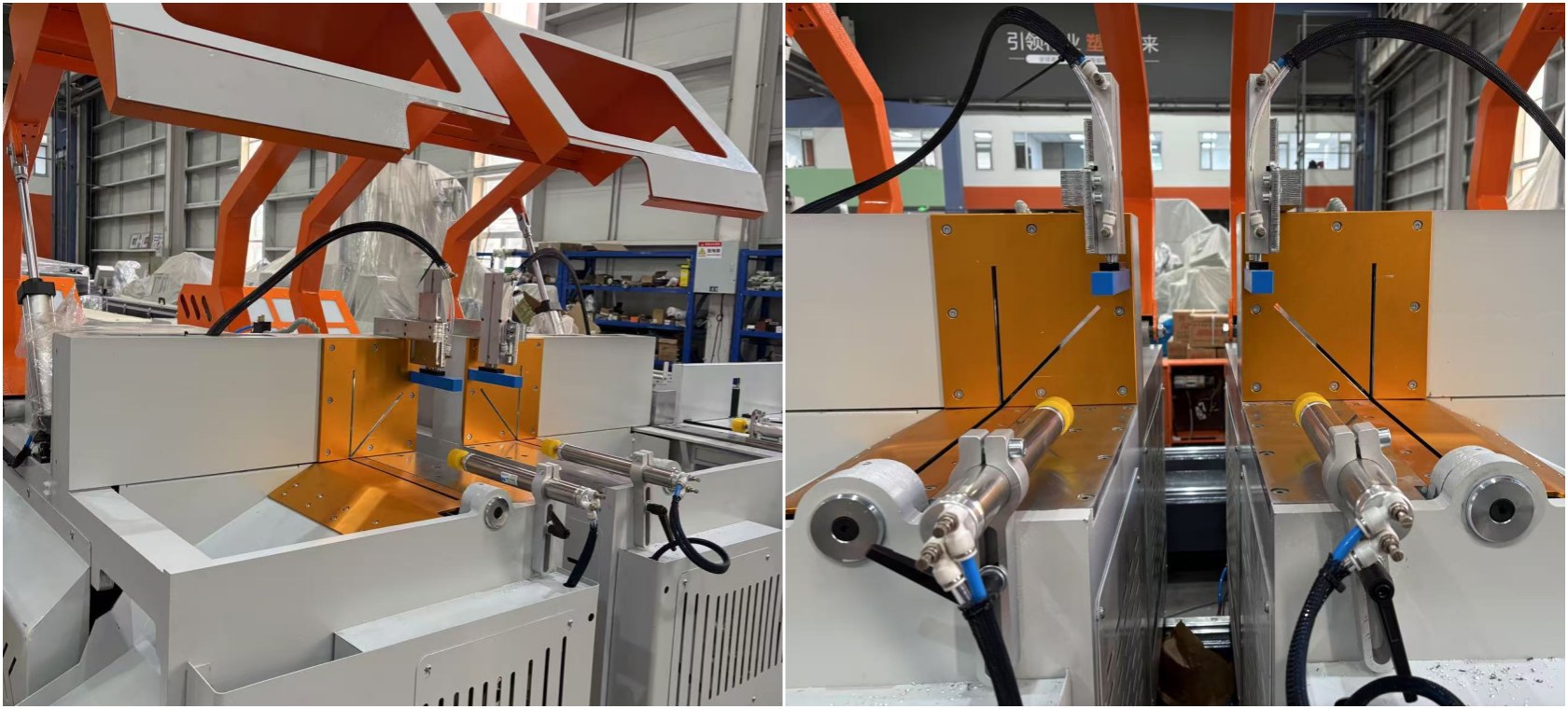

5. Coaxial saw head rotation mechanism: A follow-up support frame is installed on the movable saw head, ensuring high precision in profile cutting surfaces.

6. Equipped with carbide saw blades mounted on the spindle. The spindle is driven by a motor via a belt, delivering high cutting speed, productivity, and machining accuracy.

7. The two saw heads can operate independently or simultaneously.
