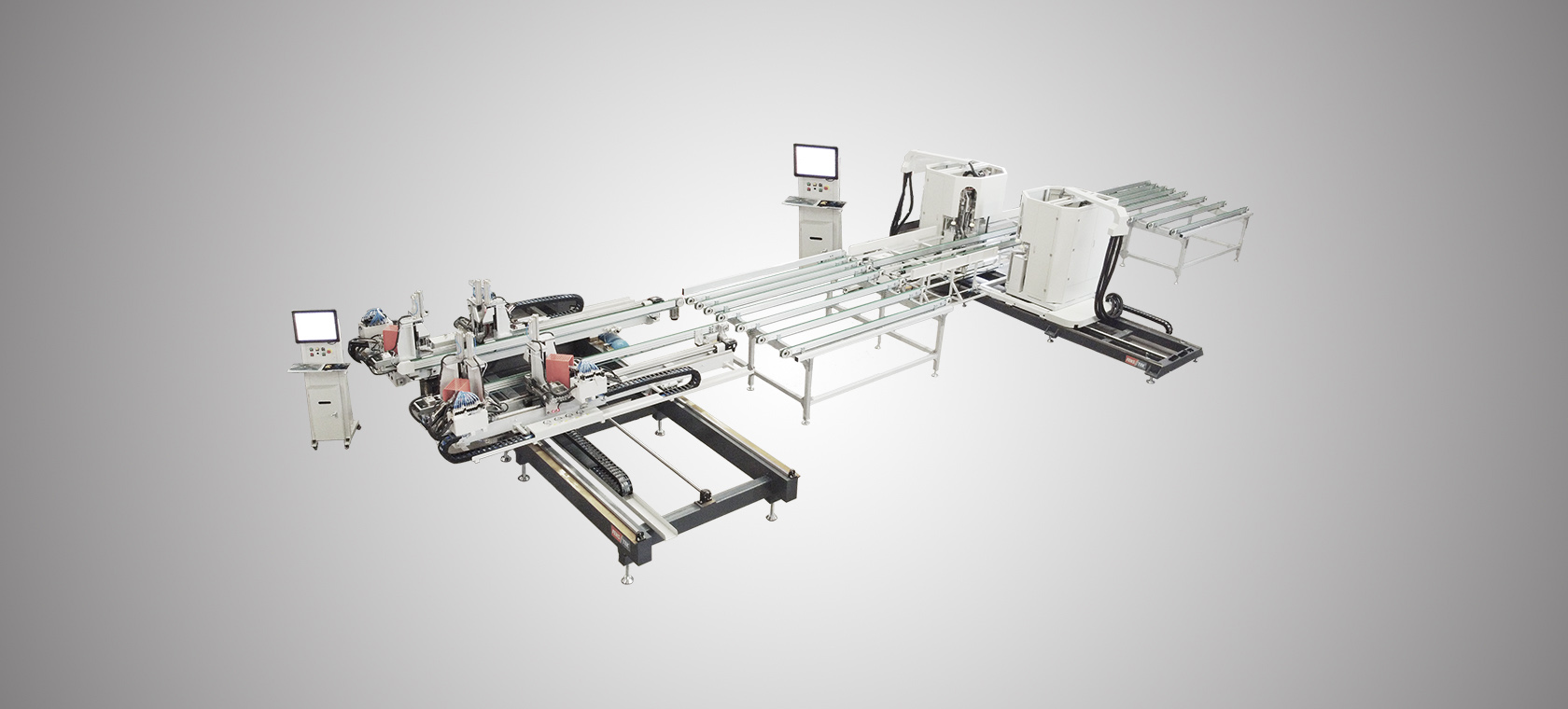

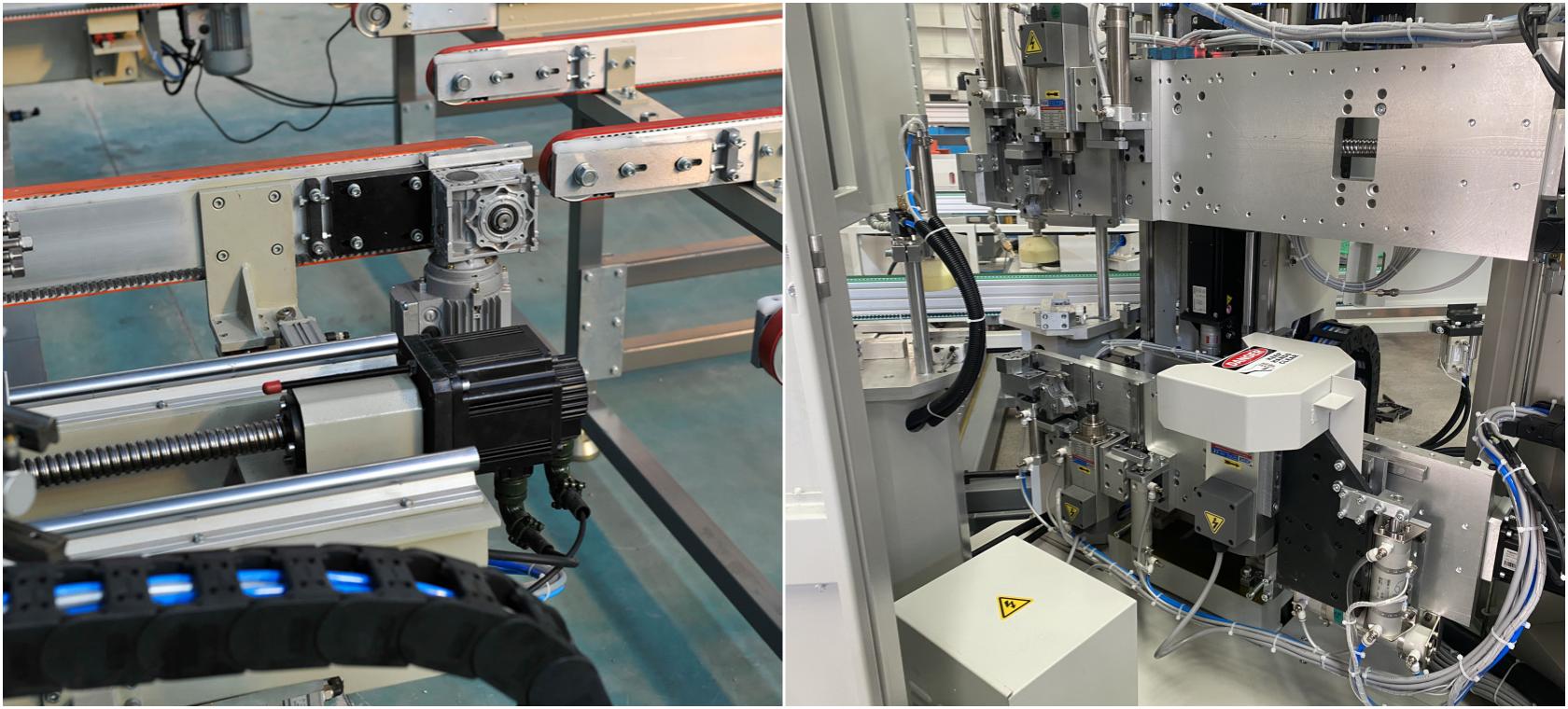

Automatic Single Layer Welding/Cleaning Production Line

Features:

Whole Machine

1. Used for automatically realizing the welding and cleaning of frame or sash, composed of welding unit, transfer unit, and corner cleaning unit, etc.

2. Imported computer control system, with high reliability.

3. Production ability between main units matched each other.

4. Automatically program and select processing programs.

5. Apply to high grade and mass windows production.

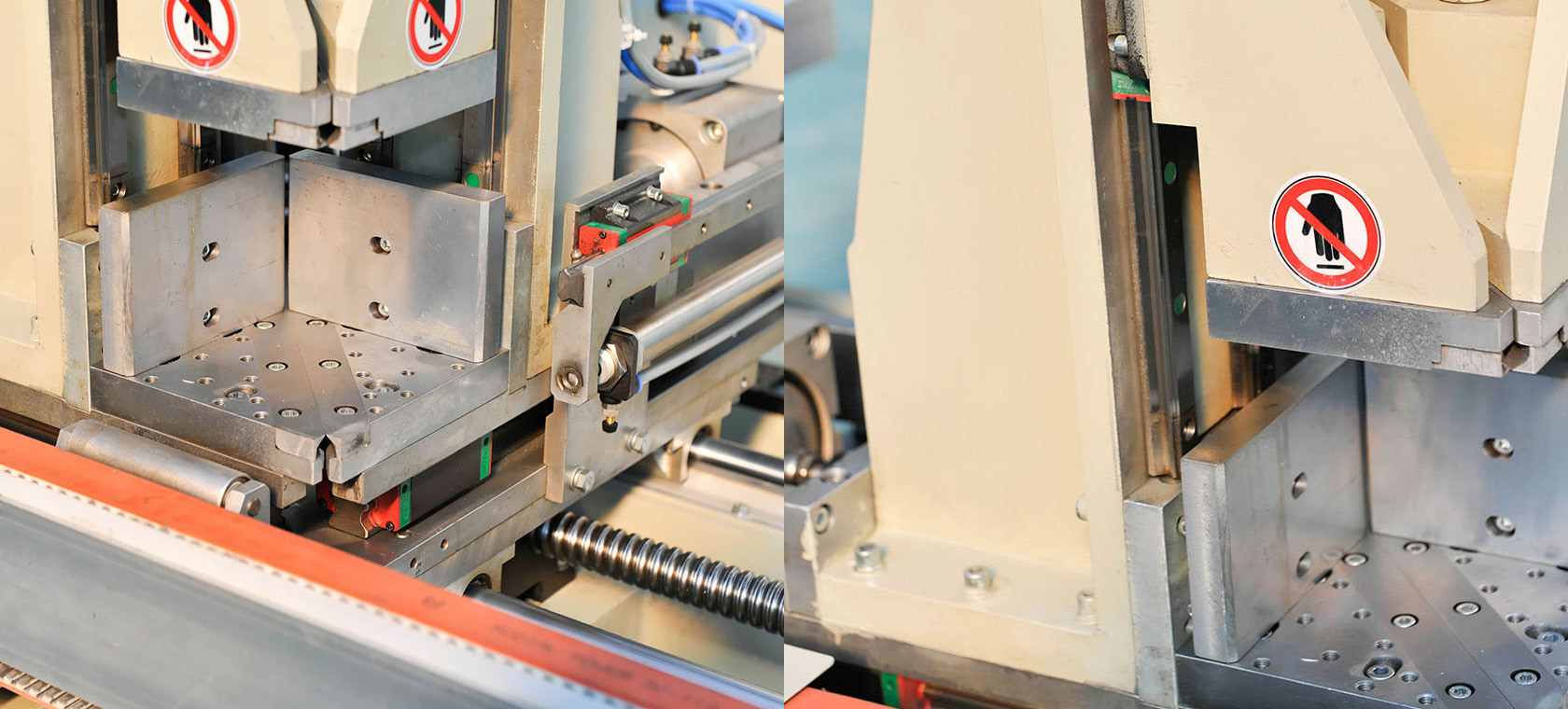

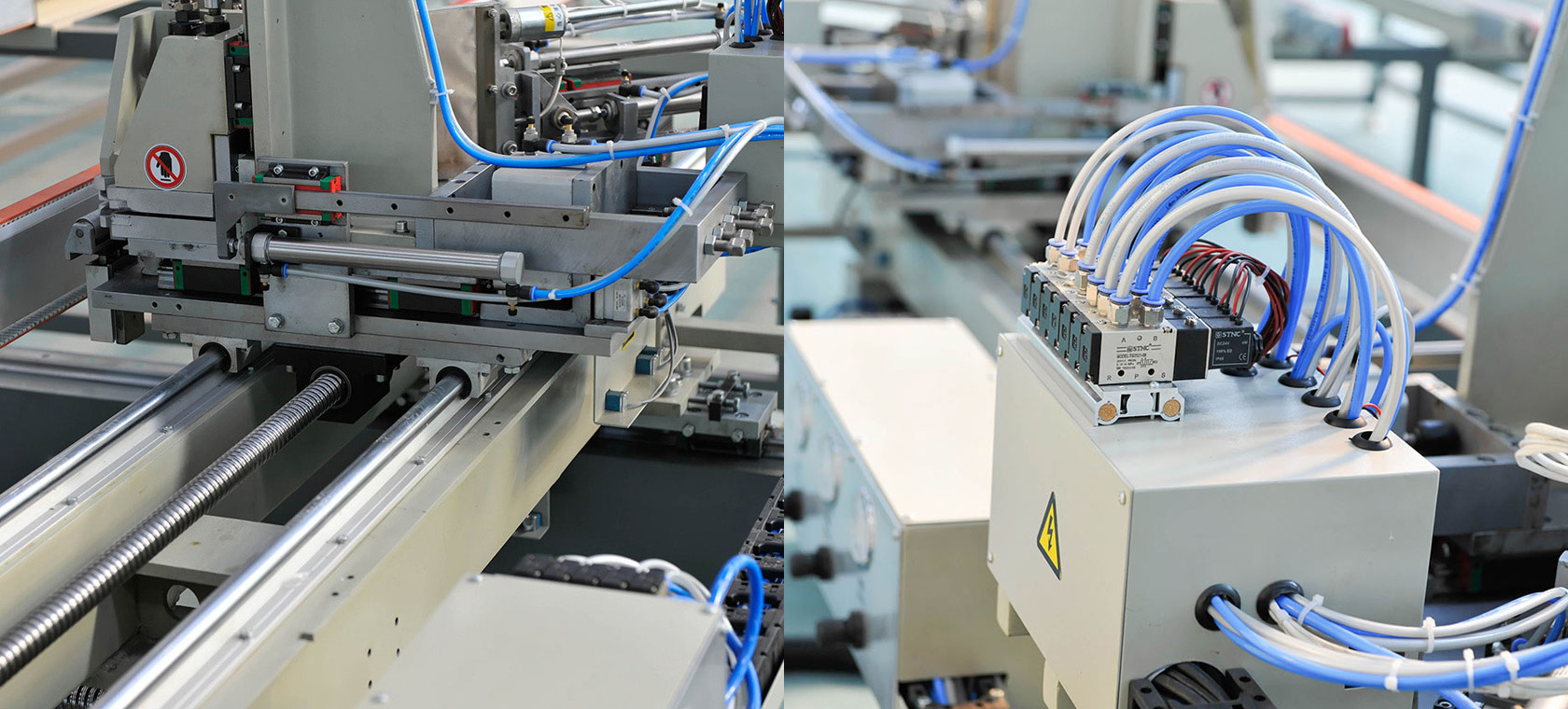

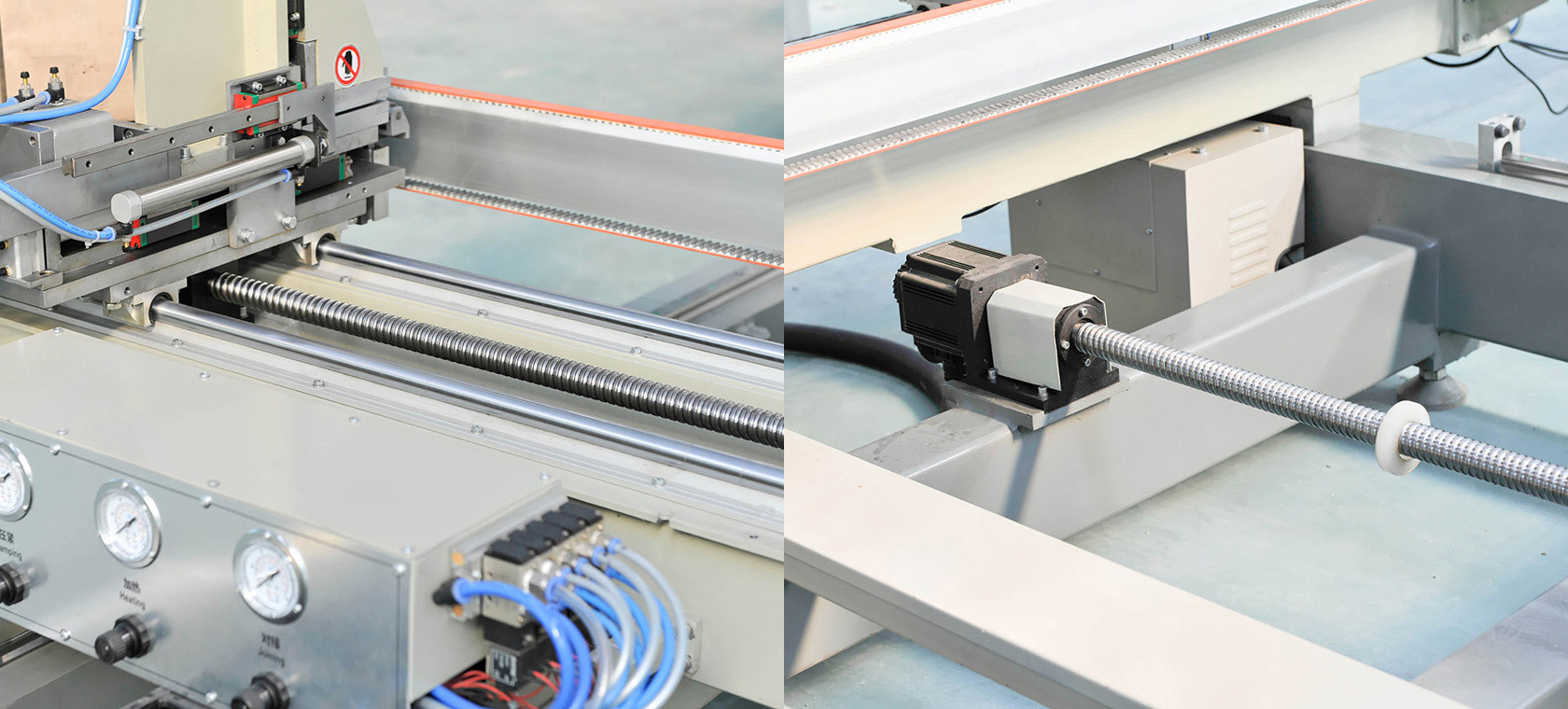

Welding Unit
1. Horizontal structure arrangement for the stable running.

2. Imported computer drive system ensured its high stability.

3. Size error compensation is available and high accuracy.

4. Special locating system and impaction device ensured its size precision.

5. Strengthen the corner welding and achieve good corner cleaning effect.

6. Supporter with proper design keeps the running stable.

7. Auto profile discharging device.

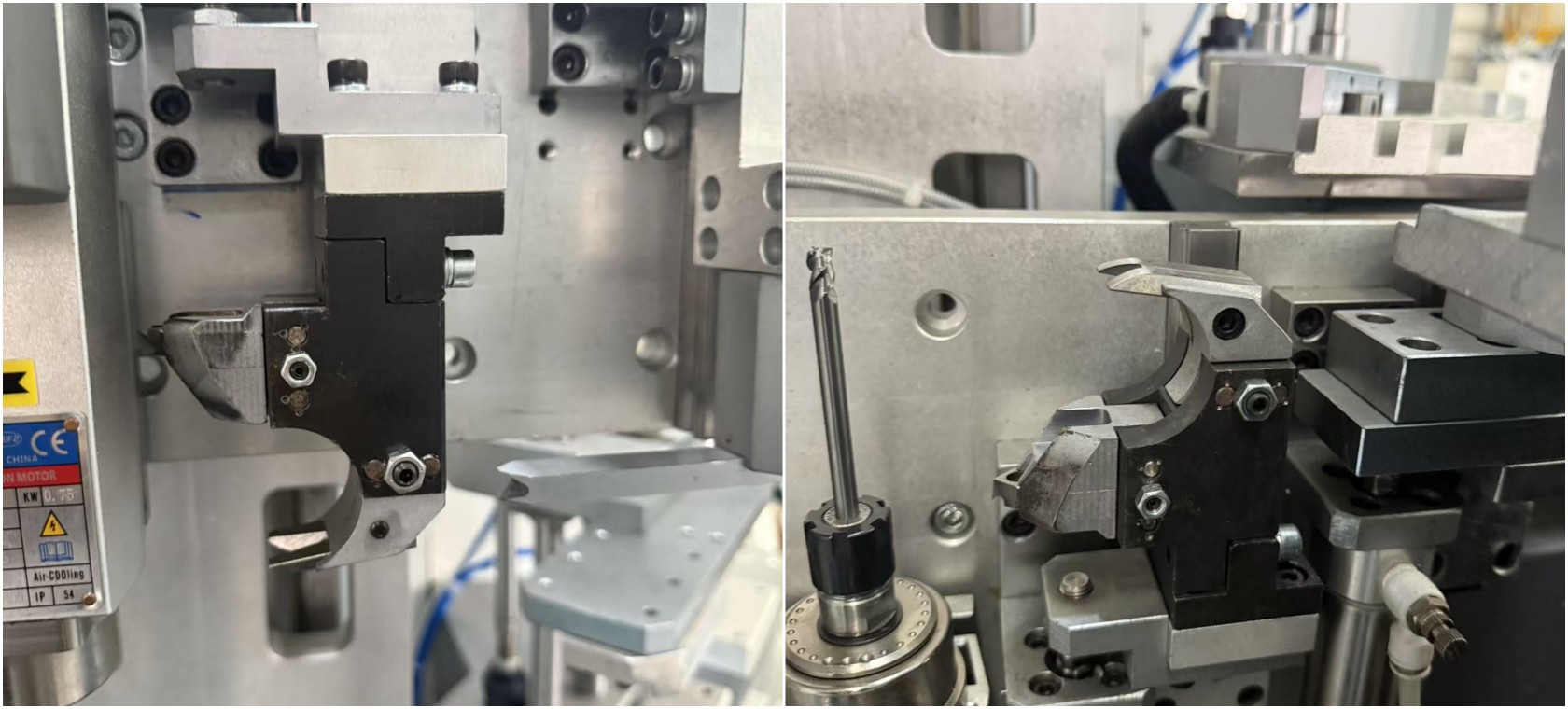

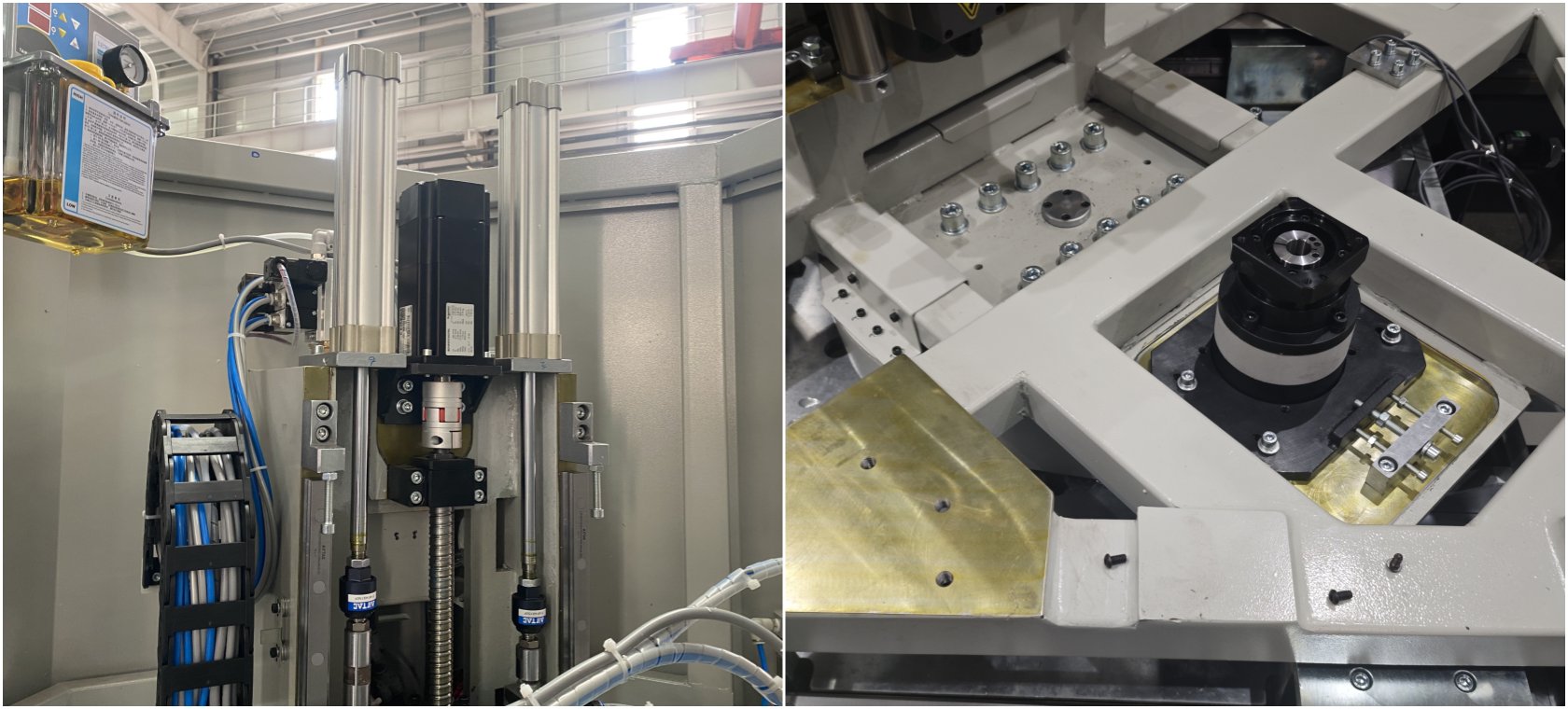

Cleaning Unit

1.Achieve the cleaning of corner welding, cleaning surface, vertical and inside rubber gasket groove ,horizontal part cleaning.

2. High processing efficiency for adopting four-axis servo-drive system.

3. Imported computer system and drive system ensured its high reliability.

4. Error compensation between arc and beeline is possible and good cleaning appearance given.

5.Equipped with automatic window turning device, saving manpower and improving cleaning efficiency.

6.Two corner cleaning in one time, the head can rotated automatically

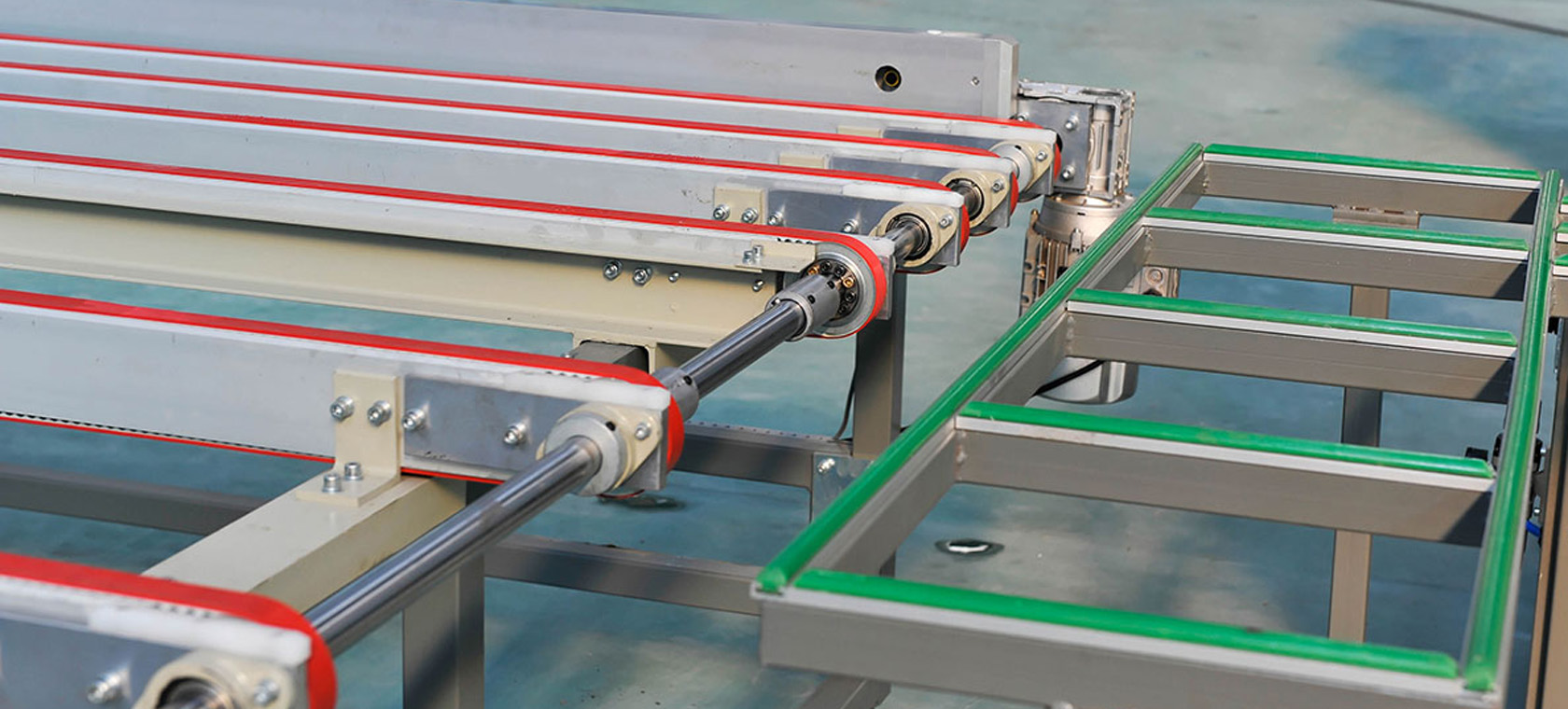

Transfer Unit

Transfer unit: used for automatically conveying the frame or sash after welding.

Main accessory
Controlling system	Schneider or other word famous system
Servo Motor	Schneider or other word famous system.
Solenoid valve	AirTAC
Cylinder	AirTAC
AirTAC	AirTAC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron
Linear bearing system	Linear (South Korean brand)
Temperature Controller	Japan Omron
Saw blade	Japan UNIKEN
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Controlling System	Schneider
Servo Driver	Schneider

Parameters
Welding Unit
Input Voltage	3N～50Hz 380V/220V
Input Power	14.5(kw)
Operation Air Pressure	0.5～0.8(MPa)
Air Consumption	250(L/min)
Welding Height	30～130(mm)
Welding Width	30~120(mm)
Welding Range	500×470～2800×2400 (mm)
Overall Dimension	12500×4700×2200（mm）
Weight	4500kg
Cleaning unit
Input Voltage	3N～50Hz 380V/220V
Input Power	13(kw)
Operation Air Pressure	0.5～0.8(MPa)
Air Consumption	60(L/min)
Profile Height	20～120(mm)
Profile Width	20~120(mm)
Minimum width for processing windows	780 mm (X-axis), 360 mm (Y2-axis)
Maximum width for processing windows	2800 mm (X-axis), 2600 mm (Y2-axis)
Overall Dimension	7600×6200×2200（mm）
Weight	3200kg

Standard accessory
Heating Plate	4pcs
Teflon Cloth	several
Complete tooling	1set
Certificate:	1pc
Operation Manual	1pc
Saw blade	1pcs
Work piece supports	2set
Air Gun	1pc
Complete tooling	1set
Groove surface cutter	2pcs
